XI(IC) - Cable Service (S.R.L)

Instrumentation, ind. & com. screen, unarmoured

halogen free - flame retardant

individual & common screen - unarmoured

operating temperature over 100 °C

(see page 6)

Design and construction	IEC 60092-376
Nominal voltage Uo / U	150 / 250 V
Maximum voltage Umax	300 V
Maximum rated temperature	90 °C according to IEC 60092-360
Flame retardancy	IEC 60332-1-2 IEC 60332-3-22 Cat A
Halogen content & corrosivity	IEC 60754-1 / 2 IEC 60684-2
Smoke density	IEC 61034-1 / 2
Toxicity & smoke density	IMO RESOLUTION MSC 41(64)
UV resistance	UL 1581 § 1200
Ozone resistance	IEC 60092-360
Cold bend and Impact test (- 40° C)	CSA C 22.2 N° 0.3-01 & N° 38-05

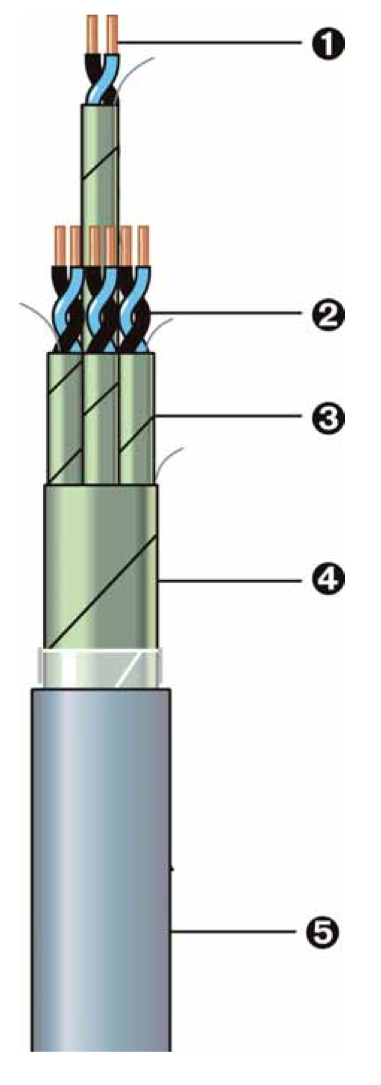

Construction data
1 CONDUCTOR	plain or tinned annealed copper flexible Class 2 or Class 5 IEC 60092-376
2 INSULATION	XLPE HF compound IEC 60092-360
CORES TWISTING	in pairs / triples
3 INDIVIDUAL SCREEN	Al/polyester tape *()** + tinned copper drain wire
4 COMMON SCREEN	Al/polyester tape *()** + tinned copper drain wire
5 OUTER SHEATH	SHF1 or SHF2 compound IEC 60092-360
separator polyester tapes *()** where necessary
*()** tape overlapping ≥ 50 %

Cores identification
pair	black light blue
triple	black light blue brown
multi pairs/triples progressive numbers printed on insulation

Sheath colour

grey (other colours on request)

Sheath marking

CCI XI (ic) 150/250 V n x (pair/triple) x sect mm² IEC 60092-376

IEC 60332-3-22 Cat A meter marking year QA n°

· Minimum Bending Radius: 4D (Overall Diameter) – see Generals section

This email address is being protected from spambots. You need JavaScript enabled to view it.

150 / 250 V

CONSTRUCTION					CONDUCTOR DIAMETER nominal	INSULATION THICKNESS nominal	OVERALL DIAMETER approx	WEIGHT approx
n	pair triple			[ mm² ]	[ mm ]	[ mm ]	[ mm ]	[ kg/km ]
2	x	2	x	0,75	1,1	0,6	10	110
4	x	2	x	0,75	1,1	0,6	12	170
7	x	2	x	0,75	1,1	0,6	15	250
10	x	2	x	0,75	1,1	0,6	18	350
14	x	2	x	0,75	1,1	0,6	21	460
19	x	2	x	0,75	1,1	0,6	24	600
24	x	2	x	0,75	1,1	0,6	27	740
30	x	2	x	0,75	1,1	0,6	29	900

2	x	3	x	0,75	1,1	0,6	12	180
4	x	3	x	0,75	1,1	0,6	14	230
7	x	3	x	0,75	1,1	0,6	17	370
10	x	3	x	0,75	1,1	0,6	21	510
14	x	3	x	0,75	1,1	0,6	24	630
19	x	3	x	0,75	1,1	0,6	27	850

CONSTRUCTION					CONDUCTOR DIAMETER nominal	INSULATION THICKNESS nominal	OVERALL DIAMETER approx	WEIGHT approx
n	pair triple			[ mm² ]	[ mm ]	[ mm ]	[ mm ]	[ kg/km ]
2	x	2	x	1,5	1,6	0,6	12	120
4	x	2	x	1,5	1,6	0,6	15	250
7	x	2	x	1,5	1,6	0,6	18	330
10	x	2	x	1,5	1,6	0,6	22	570
14	x	2	x	1,5	1,6	0,6	24,7	730
19	x	2	x	1,5	1,6	0,6	28	990
24	x	2	x	1,5	1,6	0,6	32	1.200
30	x	2	x	1,5	1,6	0,6	35	1.510

2	x	3	x	1,5	1,6	0,6	14	220
4	x	3	x	1,5	1,6	0,6	16	380
7	x	3	x	1,5	1,6	0,6	20	600
10	x	3	x	1,5	1,6	0,6	25	840
14	x	3	x	1,5	1,6	0,6	28	1.100
19	x	3	x	1,5	1,6	0,6	32	1.420
